NEW VENTILATION DUCT FAN WITH FILTER ULTRATHIN CASING SUITABLE FOR MULTIPLE SPACES
ULTRATHIN CASING
Ultrathin fuselage design , Hidden installation on the ceiling , it doesn’t add bulk .
SUITABLE FOR MULTIPLE SPACES
Bedroom , living room , home office , kids room so on
SPECIFICATION
Voltage / Frequency 220 - 240V / 50HZ , Or 110V / 60HZ ,110V / 50HZ , 220V/ 60HZ are all available
| Model | Input Power | aStatic Pressure | Air Volume | Noise | Net Weight | Unit Size | Speed Position |
| (W) | (Pa) | (㎥/h)CFM | (dB) | (KG) | (MM) | high speed |
| DHT10-23x3 | 43 | 193 | 230/135 | 26 | 11 | 630*495*195 | High speed |
| 36 | 132 | 130/76 | 22 | 11 | 630*495*195 | Low speed |
| DHT10-31x3 | 45 | 235 | 310/182 | 28 | 11 | 630*495*195 | High speed |
| 38 | 182 | 230/135 | 26 | 11 | 630*495*195 | Low speed |
| DHT15-45x3 | 57 | 216 | 450/265 | 66 | 13 | 645*495*255 | High speed |
| 47 | 191 | 350/206 | 29 | 13 | 645*495*255 | Low speed |
| DHT15-55x3 | 79 | 227 | 550/323 | 36 | 13 | 645*495*255 | High speed |
| 57 | 208 | 450/265 | 33 | 13 | 645*495*255 | Low speed |
| DHT20-62x3 | 115 | 262 | 720/423 | 40 | 14 | 625*495*295 | High speed |
| 87 | 246 | 620/365 | 38 | 14 | 625*495*295 | Low speed |
| DHT20-86x3 | 142 | 263 | 800/470 | 43 | 14 | 625*495*295 | High speed |
| 102 | 245 | 700/412 | 40 | 14 | 625*495*295 | Low speed |
| DHT20-96x3 | 156 | 290 | 920/541 | 46 | 14 | 625*495*295 | High speed |
| 117 | 285 | 820/482 | 43 | 14 | 625*495*295 | Low speed |

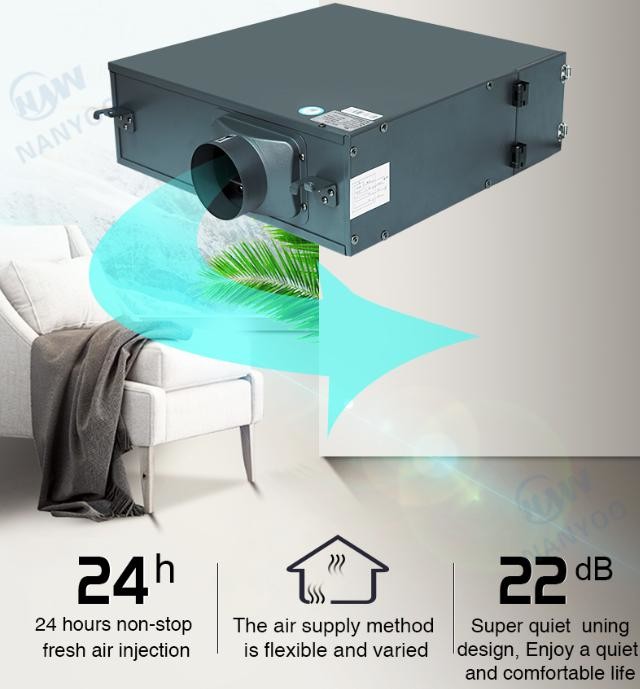

24 hours non-stop fresh air injection
The air supply method is flexible and varied .
22 dB super quiet uning design , Enjoy a quiet and comfortable life .
ENJOY YOUR LIFE / ENJOY FRESH AIR
Say goodbye to second - hand air pollution
Closed windows for a long time in the room lead to CO2 exceeding the standard feel oppressed ,
the new duct fan bring in the fresh air from outside , keeping fresh air indoor and ventilation .

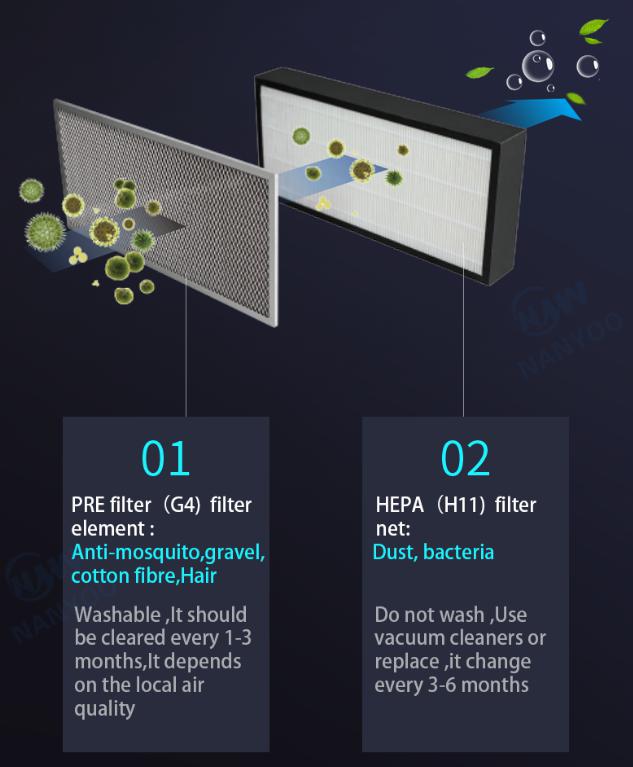

VENTILATION DUCT FAN WITH DOUBLE - LAYER FILTER
Optional install two layers HP high efficiency filters or two layers full-effective mulriple filters filtration rate more over 99.5%
1 ) FRE filter(G4) filter element
Anti-mosquito , Graved , Cotton fibre , Hair
Washable , It should be cleared every 1 - 3 months , It depends on the local air quality .
2 ) HEPA (H11) filter net
Dust , Bacteria
Do not wash , Use vacuum cleaners or replace , it change every 3 - 6 months .
Company Introduction
Foshan Nanhai Nanyang Electric Appliance& Motor Co.,Ltd (NANYOO) was established in 1987,
has specialized in the manufacturing ,Marketing and R&D of Air Curtains , Inline Fans , HRV, Cabinet Fans
and Air Purifier for over 30 years , and become a leading professional science and technology enterprise.
Especially widely used in the door position of the wind curtain of public places manufacturers.
NANYOO has passed ISO9001 international quality management system and ISO14001 environmental management system certification. The products have passed CCC, CE, CB, RoHS and SAA certification.
