Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

Name: Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install
Brand: NANYOO
Price: 1 USD

China Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install wholesale

Brand Name : NANYOO

Model Number : FM-1215A

Certification : CE/CB/CCC

Place of Origin : China

MOQ : 1 unit

Price : Negotiated

Payment Terms : L/C, T/T, D/P, Western Union

Supply Ability : 15000 pcs per month

Delivery Time : 20-30 work days

Packaging Details : Carton With Foam Protection

Type Fan : Closs Flow Fan

Name : Door Air Curtains

Mounting : Door / Wall / Window Mount or other

Operating voltage : 110V-220V / 50HZ & 60HZ

Application : Commercial, Shopping Malls, Airports, Restaurant, Warehouses

Color : White Color

Diameter of Impeller : 120

Input power : 250 W

Size : 0.9m / 1.0m / 1.2m /1.5m

Mounting Height : 2.3-3 m

Contact Now

Closs Flow Door Air Curtains With High Air Flow Suitable For Indoor Hospital / Keeping Fresh Air

Voltage / Frequency 220 - 240V / 50Hz or 110V / 60HZ , 110V / 50HZ , 220V / 60HZ are all available

Model	Diameter of Impeller	Input Power	Air Velocity	Air Volume	Noise	Net Weight	Gross Weight	Unit Size	Carton Size	Mounting Height
Model	(mm)	(W)	(m/s)	(m³/h)/CFM	(dB)	(KG)	(KG)	(mm)	(mm)	(m)
FM-1209A-2(Y)	120	150	11	1780/1047	≤45	10.2	12.5	900×220×195	940×265×220	2.3-3
FM-1210A-2(Y)	120	150	11	1980/1164	≤46	12.3	13.8	1000×220×195	1040×265×220	2.3-3
FM-1212A-2(Y)	120	180	11	2370/1394	≤48	13.7	15.5	1200×220×195	1240×265×220	2.3-3
FM-1215A-2(Y)	120	250	11	2970/1747	≤49	16.3	18.5	1500×220×195	1540×265×220	2.3-3

INSTALLATION DIAGRAM

Step 1 Remover mounting plate from air curtain fuselage

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

Step 2 If installed on concrete and other hard wallk , need postion the mounting fix screw for

the mounting plate on the wall and then fix with M8 expansion screw , the exposed part of

the expansion screw is ensured to be in 13-15 mm .

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

Step 3 If mounted on a wooden board or soft , use STS tapping screw , Fix the mounting plate ot the wall

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

Step 4 Installation method of glass door

1 / Use strong nail - free glue direct smear to installation , Solidity , Affordable and artistic

2 / Make a strut horizontally for fixting the gusset plate of the air curtain machine

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

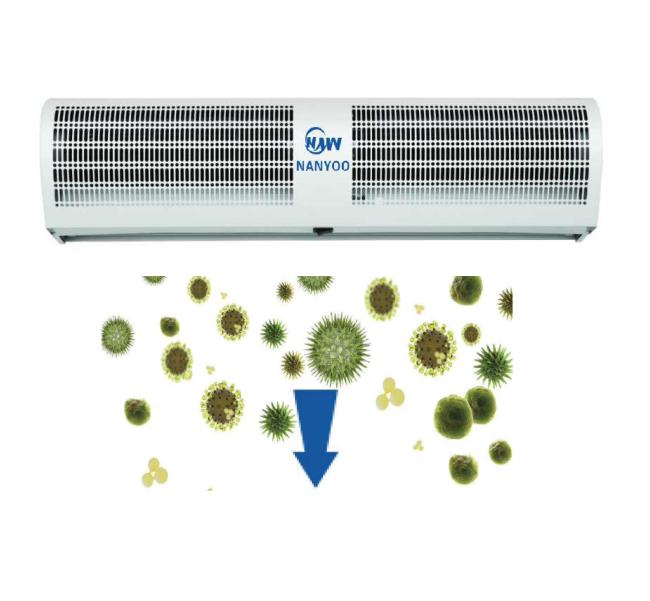

Door Air Curtains Working Principle

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

PRODUCT PARAMETERS

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

Company Profile

Foshan Nanhai Nanyang Electric Appliance& Motor Co.,Ltd (NANYOO)

NANYOO was set up in March 1987. Over more than three decades of development since its founded, it has become a professional scientific and technological enterprise which specializes in the research and development, production and sales of air curtain, ventilator and fresh air ventilation products.
 NANYOO has a large-scale processing and testing equipment more than 100 sets. The company has passed the iso9001:2000 international quality system management certification, occupational health and safety management system certification, national compulsory certification CCC certification. Also, we have the international certification like CE, CB, SASO and ROHS environmental protection report.

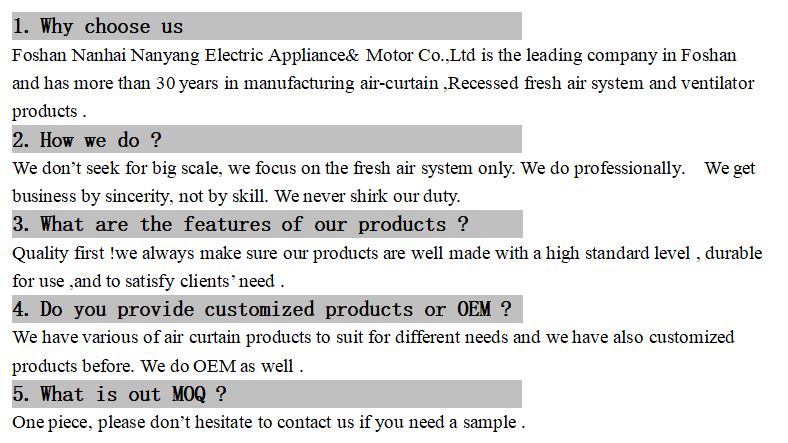

FAQ
